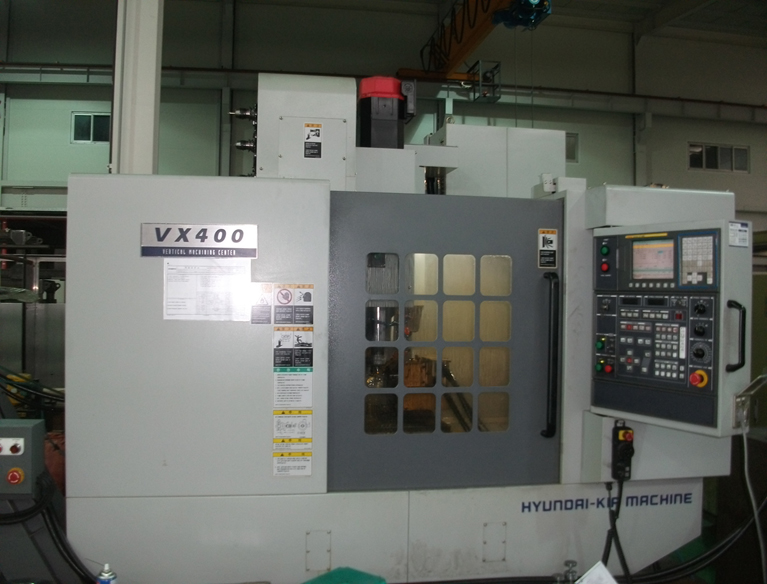

VERTICAL MCT (VX400) > Processing facilities

Mechanical property

• Stable cutting performance with the high-precision and high-intensity liner guides
• Table size (㎜) : 1,000 × 460
• Table loading capacity (㎏) : 600
• Transport distance (X/Y/Z)(㎜) : 800/460/520
• Sudden conveying speed(X/Y/Z)(m/min) : 32/32/32
• Pivot taper (NT) : #40
• Max. Pivot RPM (RPM) : 8,000(12,000)
• Pivot output (㎾) : 158/11(11/7.5)
• Tools owned (EA) : 24(30)
