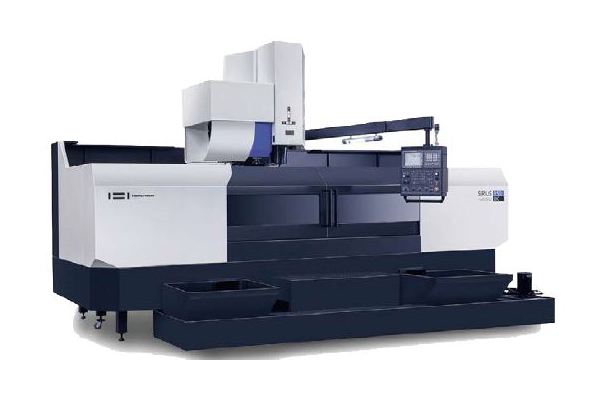

VERTICAL MCT (SIRIUS-1050) > Processing facilities

Mechanical property

• Various high-speed spindles (RPM) : 8,000/12,000 (Optional)
• Full-axis high intensity box way & Air floating system
• Stroke (X/Y/Z)(㎜) : 2,500/1,050/750
• Workspace surface (㎜) : 2,800x1,050
• Table loading weight (㎏) : 5,000
• Max. spindle speed (RPM) : 8,000(12,000)
• Spindle motor (㎾) : 30/25(40/34)
• Tool storage weight : 24 Amount
• Type of Tool Shank : BT-50
• NC System : Fanuc 31i-B
